SPECIFICATION :
Require voltage : 12 V DC
Require ampire : 6 amp
Hight : 36 inch (3 feet)
Weight: about 10KG.
Motor : normal 9V , 2 pin motors , 12 pcs.
Body : totally aluminium.
Control : manual remot controled.
......................
WORKING SPECIFICATION
Move : backword , forword , left , right.
Turning : left & right.
SPECIALITY
******
MY OTHER PROJECTS :
- UNIVERSAL SWITCH CONTROLLER (USING MOBILE NETWORK)
- HIGH SENSITIVE TOUCH SWITCH
- INVERTER
- FM & MW TRANSMITTER
- FLASHER
- MW RADIO
- AUTOMATIC ELECTRONIC PROTECTOR
- 40,80,250 W HIFI AMPLIFIER
- VOLTAGE DOUBLER
- INTERCOM
- NICEL CADMIUM TOURCH
- AUTOMATIC PUMP
- LOW VOLTAGE TUBE LIGHT
- AUTOMATIC LIGHT
- MUSICAL COLINGBELL
- AUDIO LEVEL INDICATOR
- IMERGENCY LIGHT
- TV TRANSMITTER
- INFRARADE RIMOTE TESTER
- FUSE BREAK ALARM
- INVISIBLE EYE
- AUTOMATIC LATER BOX
- AUTOMATIC LIGHTIG SYSTEM
- ELECTRONIC FILTER
- TWO WAY SWITCH
- LIGHTING BY FUSED TUBE LIGHT
- MICROPHONE (BY CONDENSER & SPEAKER)
- HIGH BASE PREE AMP
- IMERGENCY LIGHT
- COMPACT CHARGER TORCH (50gm)
- MINI RADIO STATION
- AUTOMATIC IMERGENCY FAN
- ELECTRICITY FROM WAVE OF SEA
- AND MORE....................
:

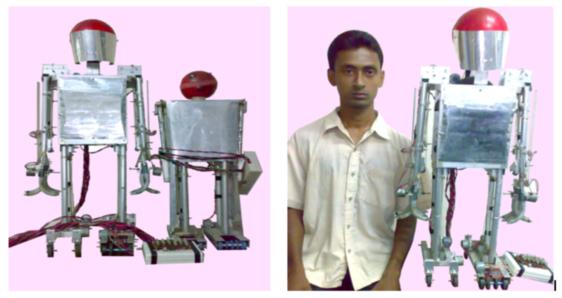

This is third edition of my robot. It was verry difficult for me to build a structure of a robot at first time ,because i never see a real robot befor & never study about it.. But with hard labour i succeded to make this for three times. I still thinking "how can i do this"? day & night .I was made total structure & all diagram of my robot .

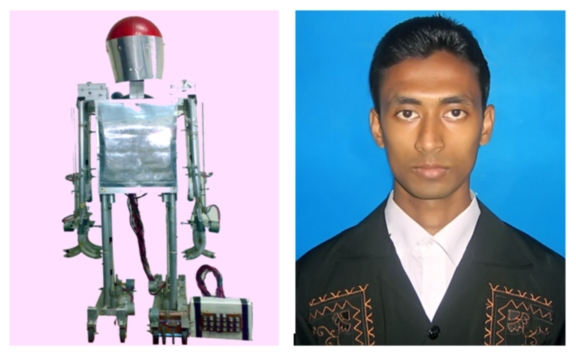

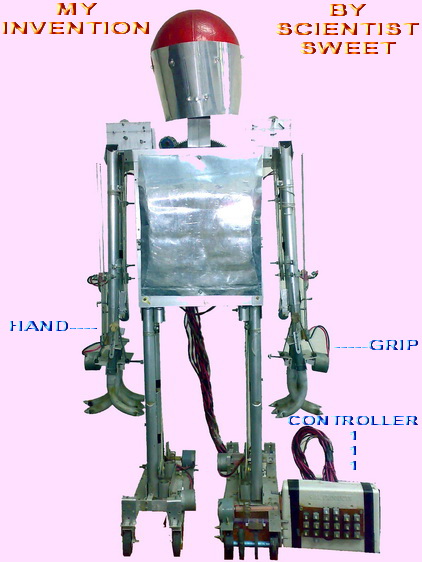

If you carefully look at the picture you can see that there is a controller of the robot which contains about 20 numbers of SPDF swich. The robot is fully controlled by this . There is swich of backword ,forword ,turn, grip,speak, hand backword, hand forword, hand increase, hand decrease etc.
Power for run the robot can be supplyed from 12V, 6A battar or computter power supplyer.

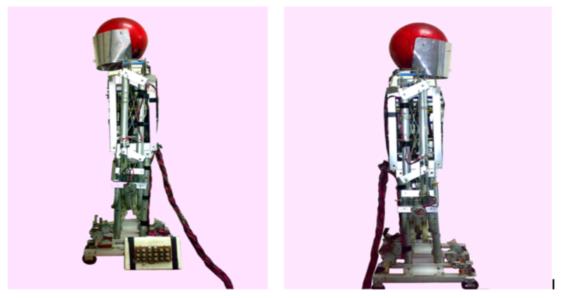

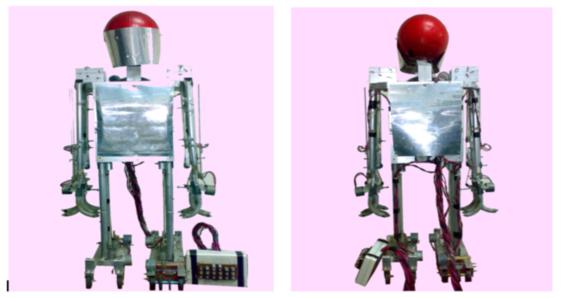

OTHER IMAGES
MD. SAIFUR RAHMAN (SWEET)
PHYSICS,
UNIVERSITY OF RAJSHAHI
RAJSHAHI , BANGLADESH
